skid steer loader
HN50 Skid Steer Loader
HN50 Skid Steer Loader
Flexible movement, unafraid of narrow spaces. Adopting skid-steer technology and a compact body design, it can achieve 360° in-place steering. It moves freely in extremely narrow spaces such as warehouses, greenhouses, community lanes, and construction corners. There's no need to reserve a large space for turning, which is an absolute advantage unmatched by traditional large equipment.
Multi-functional, king of attachments. From core buckets and forks to sweepers, planers, drills, crushers, snow blowers, grass grabbers, etc., the HN50 can easily become a sweeper, forklift, excavator, crusher... truly realizing "one machine with multiple uses" and greatly saving equipment investment costs.
Comfortable and safe, easy to operate. The humanized cab design features low noise and a wide field of vision. The operation conforms to ergonomics. The excellent all-round vision reduces blind spots. An optional sealed cab provides dust and rain protection for operators, ensuring safety without worri
PRODUCT DESCRIPTION
ModelHNS0 Diesel LoaderControl ModeMechanical
Engine ModelXinchai 490Overall Dimensions3433*1800*2007
Rated Power (kW)35.7Wheelbase (mm)1050
Maximum Torque (N·m)200/1600Dumping Height (mm)2551
Displacement (L)3.3Maximum Unloading Distance (mm)603
Travel Speed (Km/h)12Maximum Height of Bucket Hinge Pin (mm)3265
Transmission FormHydrostatic Closed CircuitGround Clearance (mm)65L
Tire10.0(1.2.0) - 16.5Operating Weight with Standard Bucket (kg)2950
Rated Load (kg)870Fuel Tank Capacity (L)88
Bucket Tipping Force (N)22000Bucket Volume (m³)0.35
System Safety Pressure (bar)180Travel Motor2×Radial Piston Variable Motor / 2×Radial Piston Double Variable Motor
Hydraulic System Rated Flow (L/min)66.2Chain Specification800S - 1R - 60

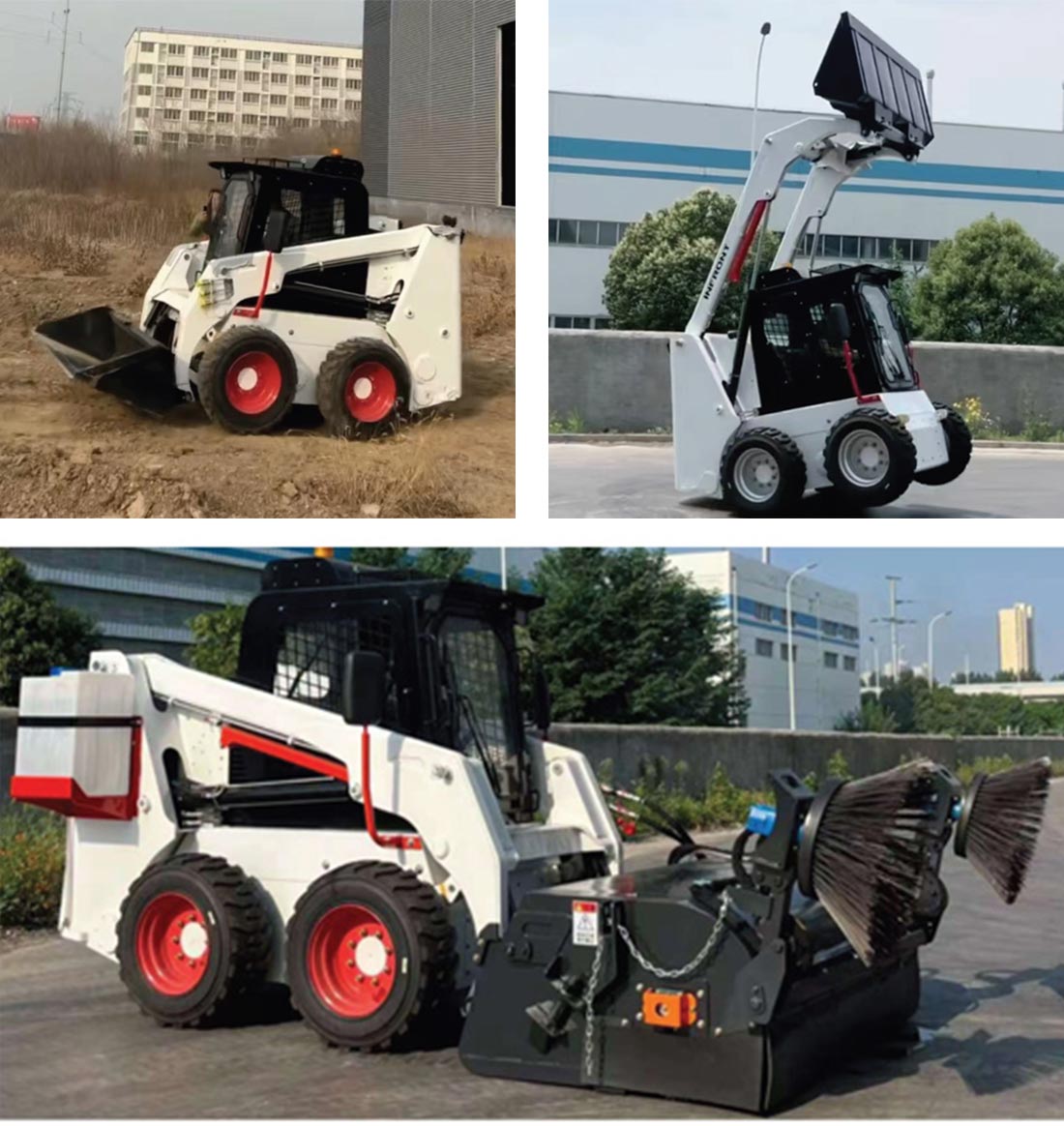

HN501-1


FAQ

Q1 Are you a factory or a trading company?
A: We have our own factory in Jining, Shandong. More than 7 years of factory operation experience and more than 10 years of manufacturing experience
Q2: How is your company’s quality control?
A: We pay great attention to quality control from beginning to end, and our quality control department will conduct strict inspections on all goods before shipment. It is a manufacturer of equipment and intelligent automation equipment that has passed the EU CE certification.
Q3 What types of excavator equipment does your company mainly produce?
A:Its main products include excavator attachments, general loader attachments, skid loader attachments, forklift attachments, intelligent vehicles, etc.
Q4: When is your shipping time?
A: Within 15 days after ordering.
